Electric Patient Lift

The Electric Patient Lift is designed to support safe and efficient patient transfers in home care and clinical environments. Built with a durable steel frame, the lift enables controlled transfers between beds, wheelchairs, baths, and other seated or lying surfaces while reducing physical strain on caregivers.

Featuring a powered lifting actuator, adjustable base, and integrated safety systems, the lift provides smooth, stable operation throughout the transfer process. The removable battery system with LCD status display supports consistent daily use, while the compact swan-neck design allows for improved positioning around furniture and tight spaces.

Features

• Powered Lift System for Assisted Transfers
  Equipped with a durable electric actuator that enables smooth lifting and lowering. This system helps reduce manual handling effort and supports safer transfer workflows for caregivers.

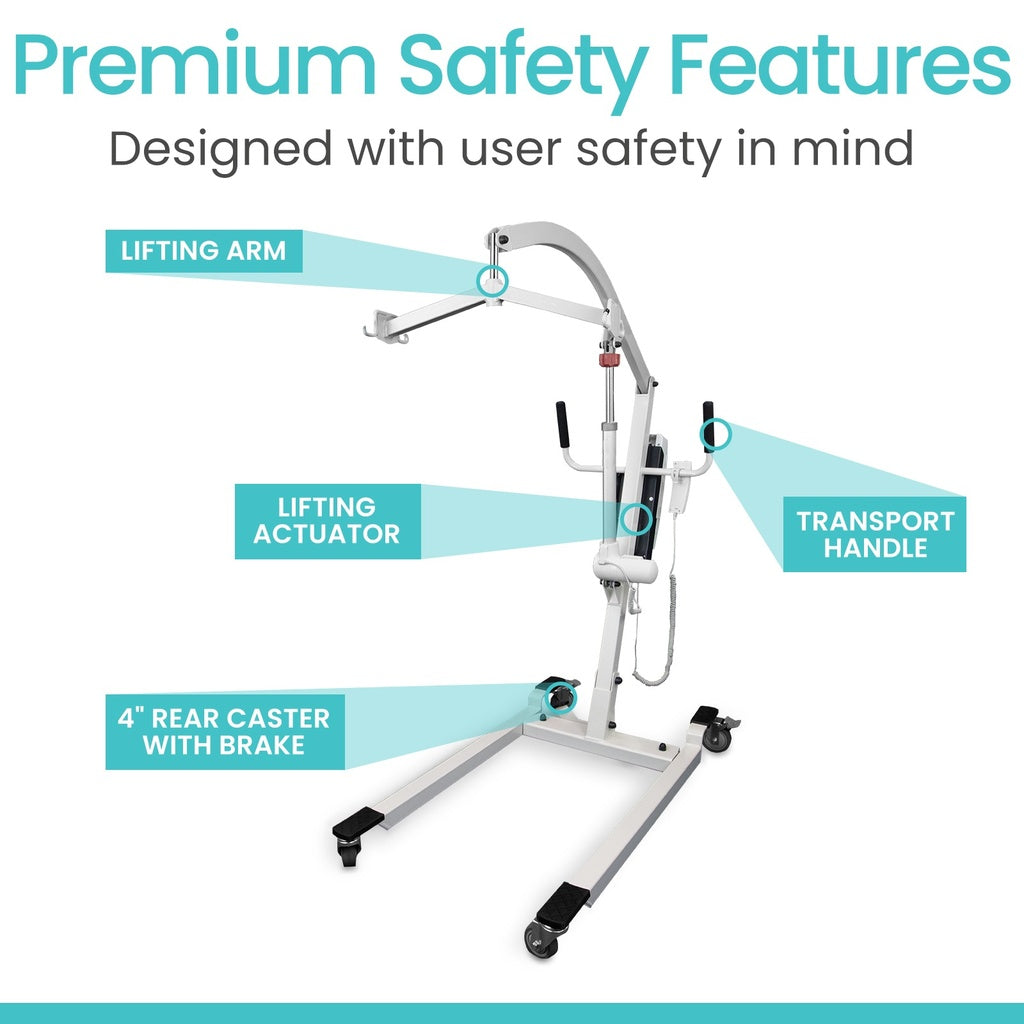

• Integrated Safety and Control Features
  Includes an emergency stop button, soft start and stop functionality, and electrical protection against over-current and over-duty conditions. A pull-proof AC connection enhances operational safety.
• Adjustable Base and Lifting Range

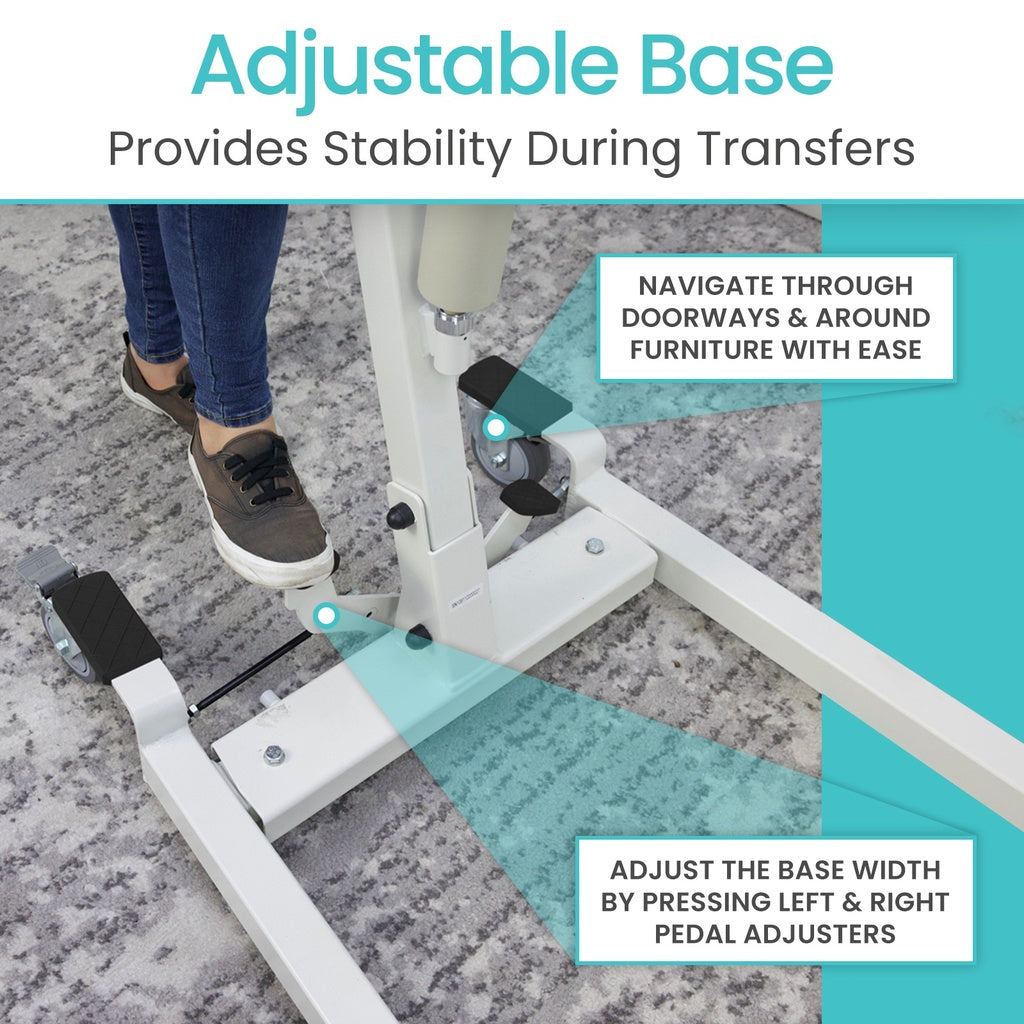

  The base width adjusts from 24.5” to 31.4” using a foot pedal, allowing easier access around furniture and mobility devices. The lifting range of 31” to 68” supports a variety of transfer scenarios.

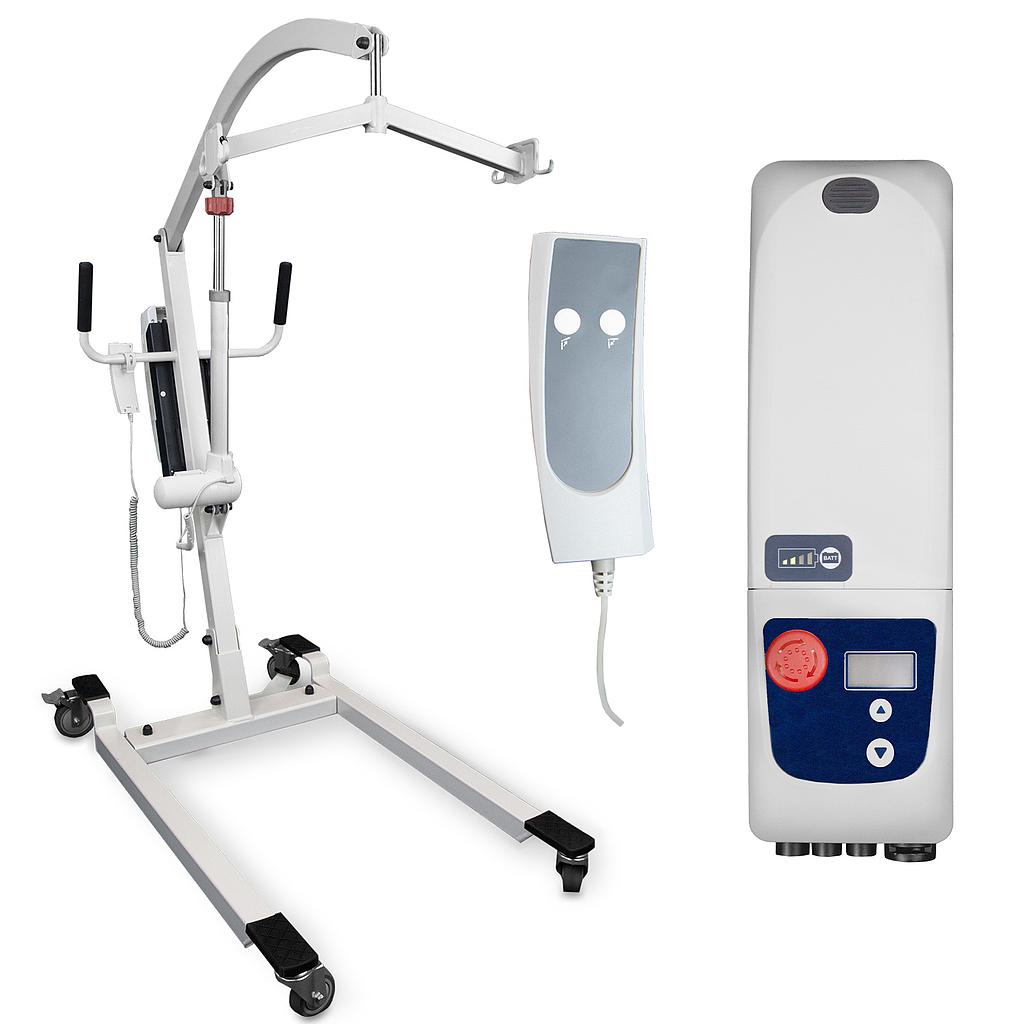

• Removable Battery with LCD Monitoring
  Features a detachable battery pack with quick-release functionality for convenient charging. Indicator lights and an LCD display provide real-time battery status for uninterrupted operation.
• Durable Steel Frame Construction
  Built with a high-strength steel frame supporting up to 400 lbs. Designed for repeated use in both residential and professional care environments.

General Specifications

What’s Included:

• 1x Electric Patient Lift.

Uses:

• An electric patient lift designed to assist caregivers in transferring individuals between surfaces using a compatible sling system.

Color:

• White.

Size(s):

• One size.

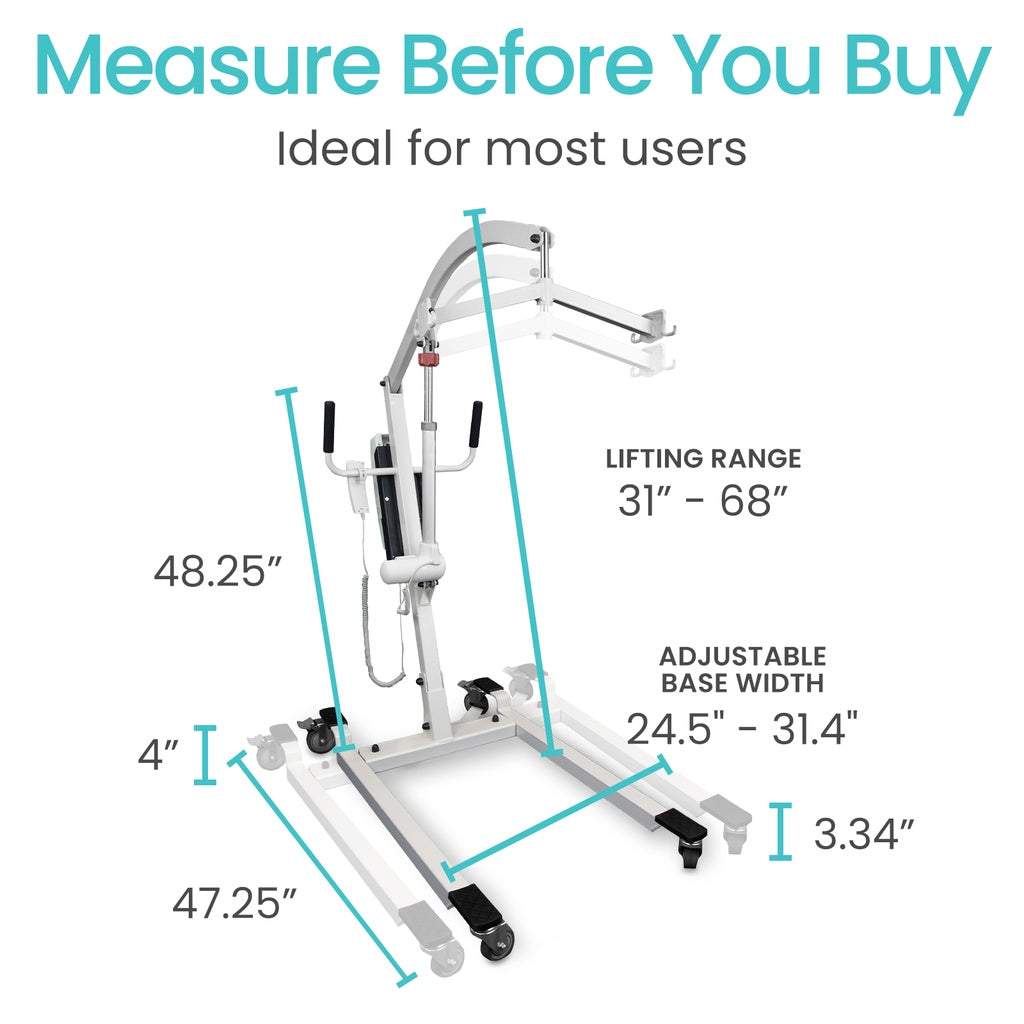

Dimensions:

• Overall Dimensions: 47.25” x 24.5” x 48.25” (L x W x H).
• Adjustable Base Width: 24.5” – 31.4”.
• Lifting Range: 31” – 68”.

Weight:

• 95 lbs.

Weight Capacity:

• 400 lbs.

Material(s):

• Steel.

Safety Notes:

• Always ensure sling is properly secured before lifting.
• Do not exceed 400 lb weight capacity.
• Ensure base is properly positioned before operation.
• Use only on stable, level surfaces.

Care Instructions:

• Clean with a soft cloth and mild detergent.
• Avoid abrasive cleaners or solvents.
• Dry thoroughly after cleaning.
• Store in a clean, dry environment.


Warranty Policy

• Frame: Limited Lifetime.
• Wheels: 90 days.
• Brakes: 90 days.
• Miscellaneous items: 90 days.
• Battery & Electronics: 1 Year.
• Moving parts (Lift Actuator): 1 Year.
