3 Wheel Mobility Scooter

Dealer Margin Notice: This product carries a low dealer margin, ideal for drop shipping. While this margin is lower than our standard dealer margin, it enables you to expand your product range without the need for inventory investment.

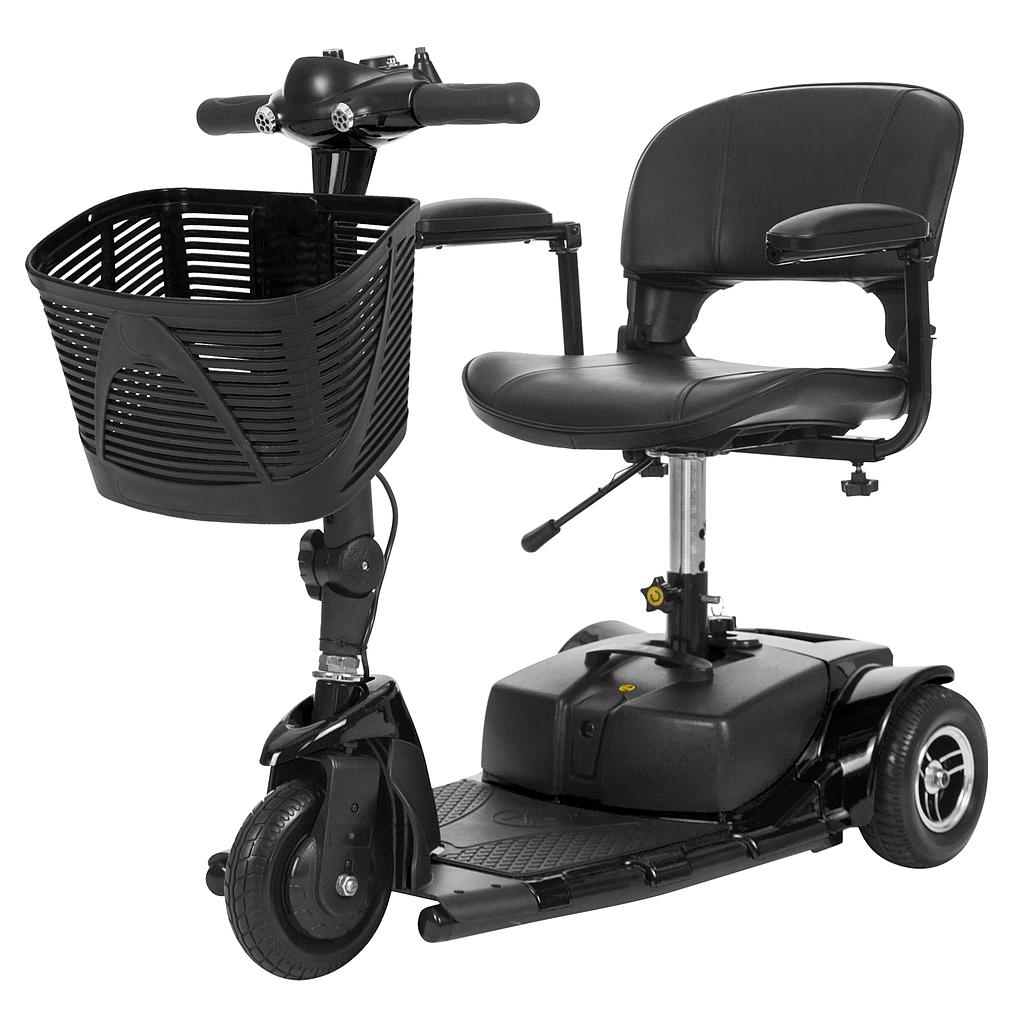

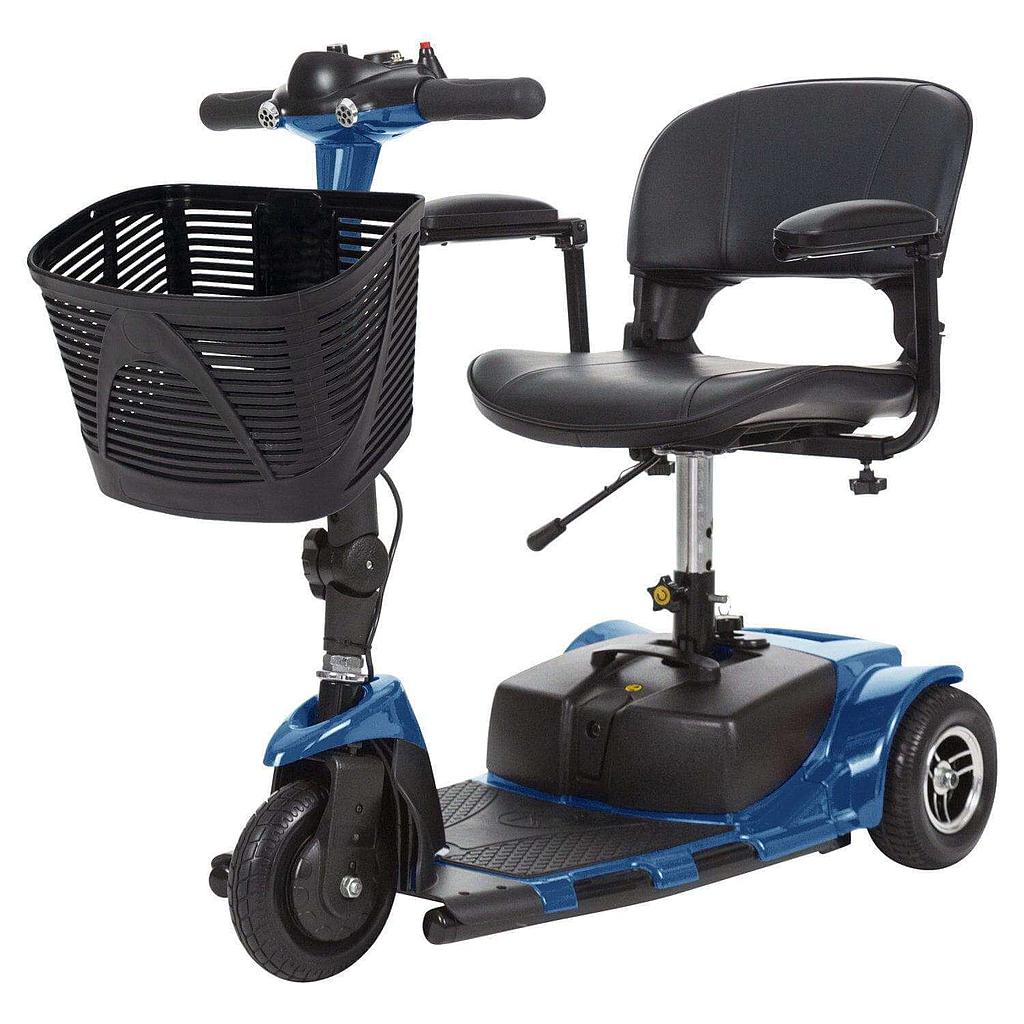

Providing safe, stable assistance, the Vive 3 Wheel Mobility Scooter easily maneuvers over smooth surfaces such as concrete, pavement, tile and carpeting with a tight turning radius to easily navigate through doorways and hallways. The mobility scooter includes a comfortably wide, padded seat with flip-back armrests, 7.5” flat-free tires and front-mounted storage basket for carrying daily necessities. With a top speed of 3.7 mph, the mobility scooter has a driving range of up to 12.4 miles per charge. The power scooter also quickly disassembles into four pieces to easily fit in an average size vehicle.

Features

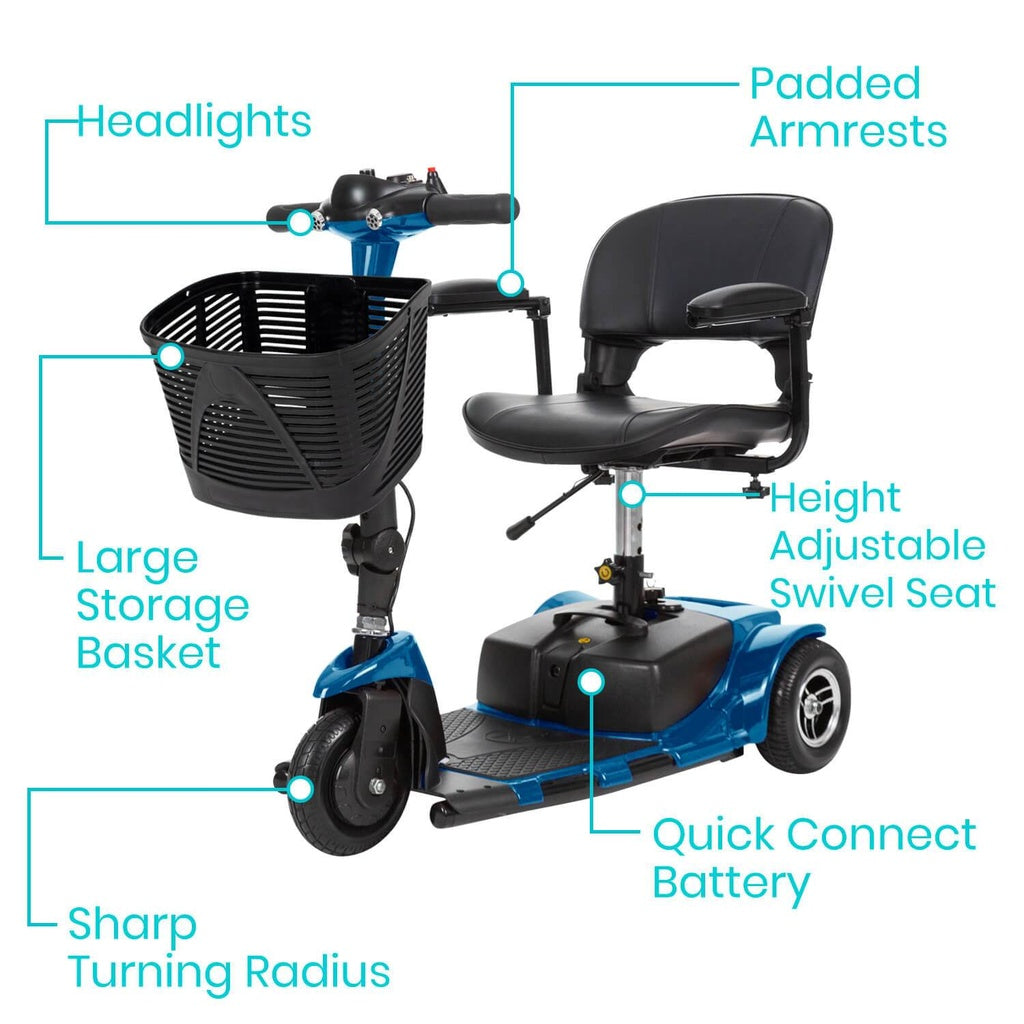

• Safe Maneuverability
  Navigate over any smooth surface with comfort and ease with the Vive three-wheel mobility scooter. Designed to safely support up to 265 pounds, the mobility scooter features flat-free, non-marking tires with a tight turning radius, a maximum speed of 3.7mph and a driving distance up to 12.4 miles per charge.
• Comfort Seating
  Lightly padded, the wide, 17” seat and backrest provide comfortable cushioning. The seat is also height adjustable for a customizable fit and rotates to facilitate easy boarding and exiting. Additionally, the scooter seat is surrounded by two padded armrests that also adjust and flip upward for greater convenience when exiting or boarding.
• Easy Portability

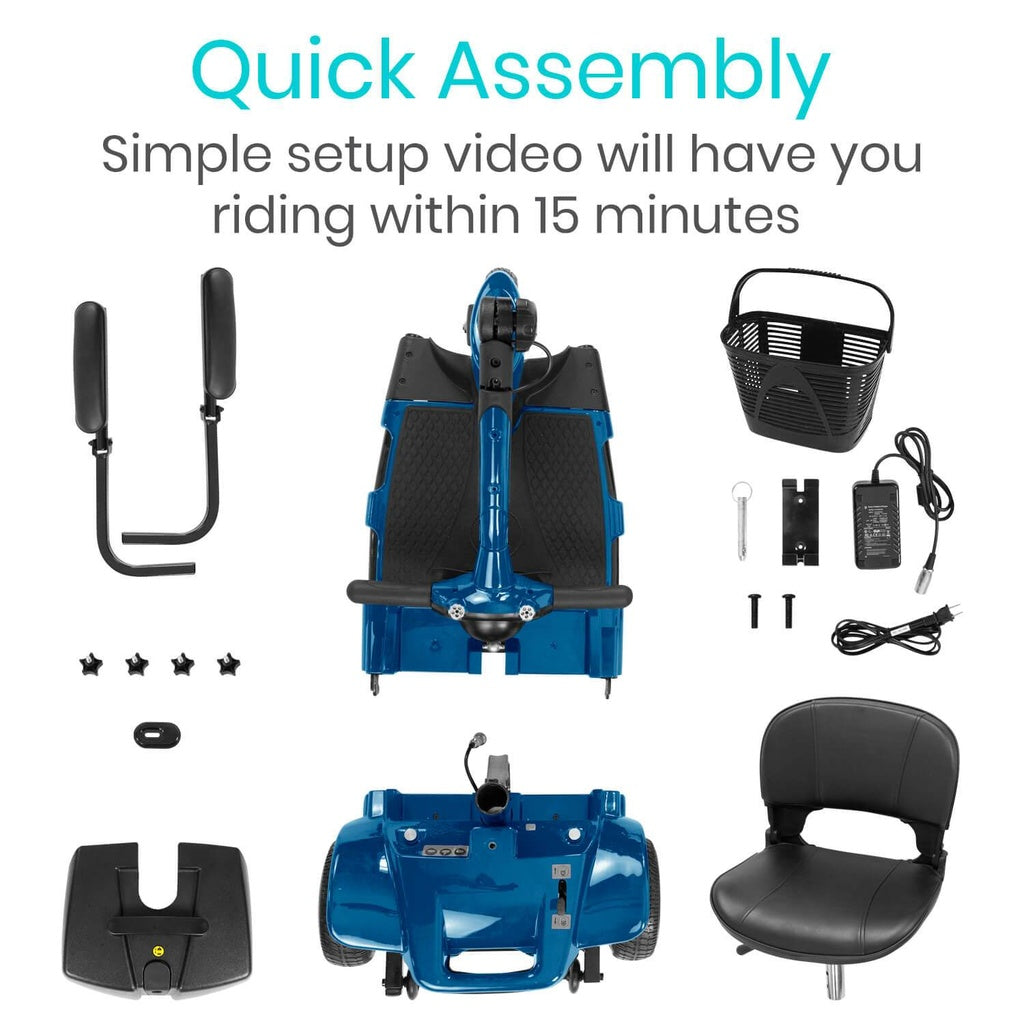

  Quickly disassemble the Vive mobility scooter into four separate pieces for easy transportation. Featuring a folding tiller and removable seat, each section easily fits in the trunk of standard size vehicles. The rear section is the heaviest section weighing in at 29 lbs.
• Intuitive Control Panel
  Located on the tiller console, the control panel allows you to set the maximum speed with the variable speed dial, change from a forward to a reverse direction, turn on the headlight as well as produce a warning tone as needed.
  The display also includes a color-coded battery life indicator for checking the status of the battery at a glance.

General Specifications

What’s Included:

• 1x Vive 3 Wheel Mobility Scooter.
• 1x Off-board battery charger.
• 1x Front-mounted storage basket.

Color:

• Black / Blue / Silver / Red.

Size(s):

• One size.

Dimensions:

• Overall dimensions: 37” x 19.6” x 33” (L x W x H).
• Seat Height (from ground): 18.5” –21.5” (adjustable).
• Seat Dimensions:  17” x 15” (W x D).
• Seat Back Height: 13”.
• Armrest Height (above seat): 6.75”.
• Legroom (seat back to tiller): 27”.
• Seat-to-Deck Height Range: 16.25” - 17.25”.
• Front Tire Diameter: 7.4”.
• Rear Tire Diameter: 7.4”.

Weight:

• Total weight: 77 lbs.
• Net Weight: 84 lbs.
• Weight of Heaviest Piece: 29 lbs (rear base).

Weight Capacity:

• Up to 265 lbs.

Maximum Speed:

• Up to 3.7 mph.

Maximum Travel Range:

• Up to 12.4 miles per charge.

Minimum Turning Radius:

• 2.6ft.

Ground Clearance:

• 2.00”.

Sloping Ability:

• ≤ 9°.

Climbing Ability:

• ≤ 9°.

Static Stability:

• ≥ 9°.

Dynamic Stability:

• ≥ 6°.

Braking System:

• Electronic, regenerative and electromechanical.

Maximum Braking Distance:

• 59”.

Controllers:

• Controller Maximum Output Current: 45A.
• Controller Minimum Output Current: 2A.

Motor:

• 24V/180W (24-volt DC motor, sealed mini-transaxle).

Battery:

• 2-piece lead-acid battery (12V 12AH each).
• Battery Charger: Off-board charger, 2amp.

Material(s):

• Seat Material: Black vinyl, molded composite base.

Warranty Policy

• Frame - 5 years.
• Electrical - 6 months.
• Batteries - 6 months.
• Horn - 6 months.
• Controller - 6 months.
• Handles - 90 days.
• Charger - 90 days.
• Battery case - 60 days.
• Wheels - none / on arrival 30 days.
• Screws / bolts / nuts - none / on arrival 30 days.
• Cushions / seats - none / on arrival 30 days.
• Paint / panels - none / on arrival 30 days.
• Keys - none / on arrival 30 days.
